    Negative Pressure Isolation Equipment

    Brief Description:

    BG-3200/BG-3210 negative pressure isolation equipment is used in places of entry & exit, airports, docks, stations, hospitals, disease prevention & control centers, etc., to temporarily isolate or short-distance transfer patients who have the possibility to transmit infectious viruses through aerosol (air). It can not only prevent medical staff and surrounding people from infection but also play a positive effect on the control of emergencies.


    Product Detail

    Product Highlights

    Product Tags

    BG-3200/BG-3210 negative pressure isolation equipment adopts whole steel structure painting, with transparent toughened glass protection, hull has five toughened glass surface observation. Micro negative pressure is formed within the environment, with lighting, intercom function, temperature measurement, video monitoring, pressure monitoring, 4G communication, real-time positioning, and other functions. This equipment is powerful which can make the characteristics of rapid deployment, rapid sterilization and convenient mobile.

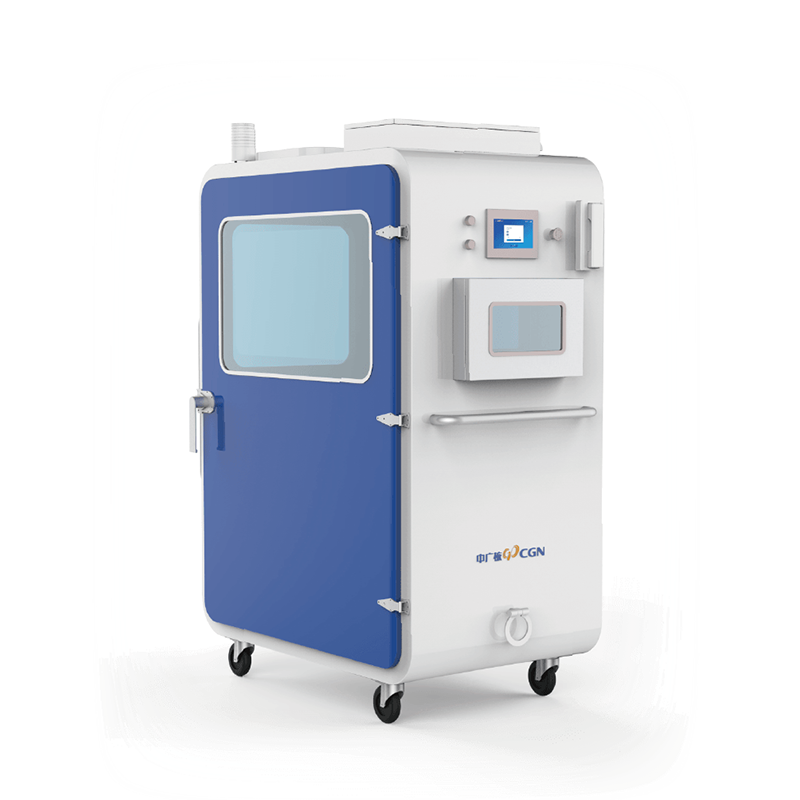

    Negative Pressure Isolation Equipment (2)

    Observant type

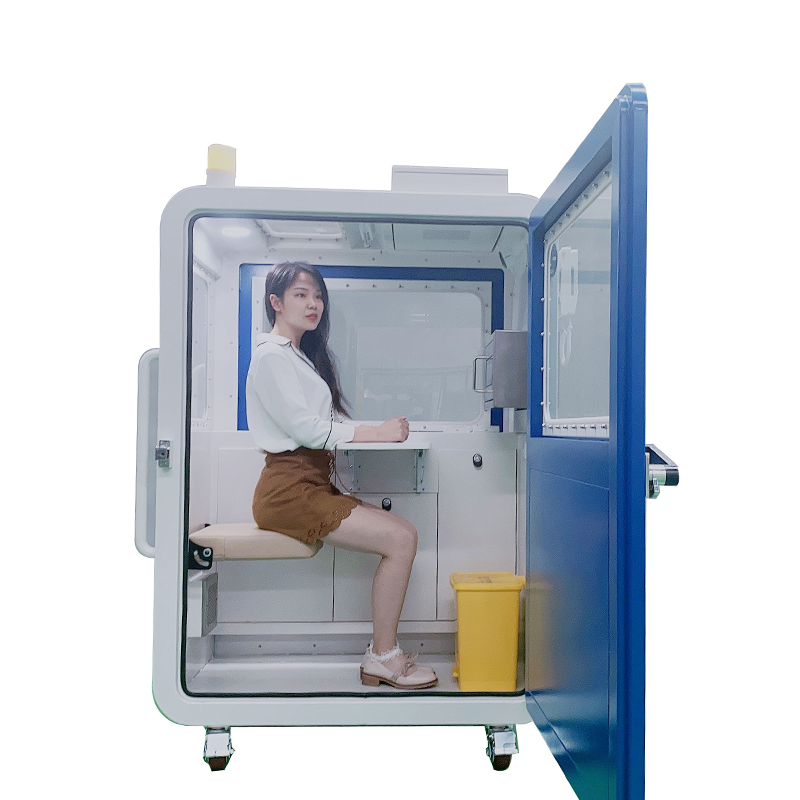

    Negative Pressure Isolation Equipment (1)

    Transfer type

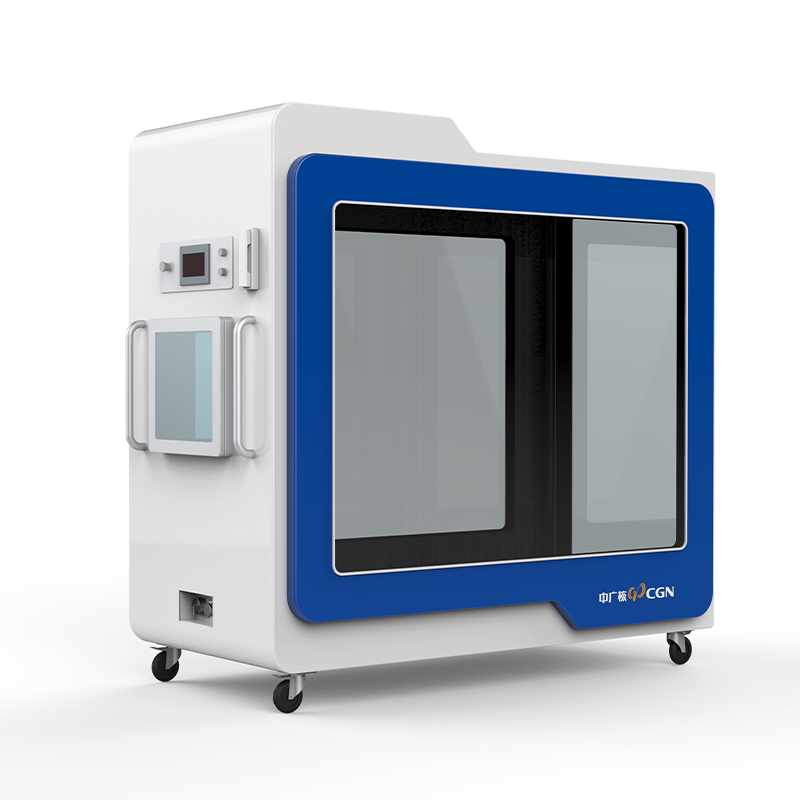

    Negative Pressure Isolation Equipment (3)

    Transfer type

  • Previous:
  • Next:
    • The negative pressure system is composed of air inlet system and exhaust filter system, and the whole is reliable and sealed. Under the action of negative pressure exhaust air purification device, one-way airflow is formed, the air enters from the fresh air outlet, and is discharged from the exhaust outlet after efficient filtration. The negative pressure value can be adjusted. The cross-flow fan makes the air flow and enhances the comfort of the cabin personnel.
    • The top of the cabin is equipped with ultraviolet ozone disinfection lamp, which can disinfect the cabin for a long time when transportation or observation is not carried out. After disinfection, the door will be opened and the fan will be started for ventilation. The system is equipped with human body sensing device.
    • The cabin has five transparent toughened glass, convenient for lighting and monitoring which provides space for three people.The transfer type is designed for single person, with soft leather seat that automatically bounce-back for comfortable riding and folding table for convenient storage of personal belongings. Power sockets are reserved for patients and medical staff to access electricity, and medical physiological monitoring equipment can be expanded or mounted. Equipped with call and alarm device, the crew in the cabin press the emergency call button to trigger the sound and light alarm outside the cabin. After hearing the alarm, the crew outside the cabin can talk with the crew inside the cabin through the beeper.
    • The universal wheel is installed at the bottom, and the front and back are equipped with a push handle, which can be manually pushed. The overall size of the transfer type is compact, can enter the freight elevator, and equipped with a pull hook which can be pulled by external force.
    • After the power supply is cut off, the endurance time of cabin is ≥4 hours under the condition of normal operation of all functions.
    • A remote wireless camera is installed to monitor the activities of people in the cabin, and the camera’s own software system which is used to timely detect and deal with problems through mobile phone applications and computers.
